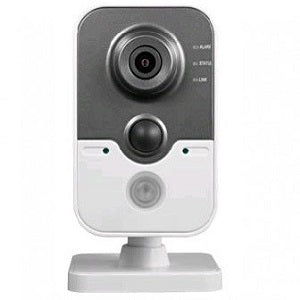

2 Mega Pixel IP Cube Camera
Features
-2 megapixel High Resolution
-WiFi
-Built-in Mic and Speaker
-PIR Sensor
-Micro SD Card Slot
-3D DNR & DWDR & BLC
-True Day / Night
TECH SPECS
|
Camera
|
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Min. Illumination |
0.028 lux@F2.0, AGC ON
0 lux with IR |
| Shutter Time |
1/30s ~ 1/100,000s |
| Lens |
2.8mm((92° ) |
| Lens Mount |
M12 |
| Optical Filter |
Mechanically Switching IR Filter |
| Noise Reduction |
3D DNR |
| WDR |
Digital WDR |
| Audio |
Built-in Microphone and Speaker(2Way Audio) |
| Alarm |
1ch Alarm In/Out |
| WiFi |
Built-in |
| PIR |
Built-in PIR sensor |
| Storage |
Micro SD Card slot(Max 64GB) |
| Video Compression |
H.264/M-JPEG |
| Bit Rate |
32 Kbps~16Mbps |
|
|
| Max Resolution |
1920×1080 |
| Frame Rate |
30 fps (1920×1080) |
| Image Settings |
Saturation, brightness, contrast adjustable |
| BLC |
Yes, zone configurable |
|
Network
|
| Network Storage |
NAS |
| Alarm Trigger |
Motion detection, tampering alarm, network disconnect, IP address conflict, storage full, storage error |
| Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP,IGMP,SNMP, FTP, 802.1X, QoS, HTTPS |
| Compatibility |
ONVIF, PSIA, CGI |
| General Functionalities (Security) |
User Authentication, reset button, flickerless, dual stream, heartbeat, mirror, watermark |
| Network Interface |
1 RJ45, 10 M/100 M Ethernet port |
|
General
|
| Power Supply |
12 V DC ± 10%; PoE (802.3af) |
| Power Consumption |
Max. 5.5W |
| Operating Temperature |
-30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing) |
| IR Range |
Up to 30ft |
| Dimensions |
2.5 x2 × 5 Inch |
| Weight |
0.8 lb |
|
NVR
|
| NVR |
NUVIS, PRIME, MEGA |
