Nuvis 8 Camera wired POE Camera system

Nuvis 8 Camera wired POE Camera system

Regular price $1,995.00
Regular price Sale price $1,995.00
Sale Sold out
Shipping calculated at checkout.
View full details

About This Product

The wired 8 channel ( camera ) POE  Nuvis system from CYTE is one of the best on the market. To install this system all the end user need do is install the cameras where needed , place the NVR/DVR where needed run the cables from the camera to the NVR/DVR , plug the cables in , plug in the DVR to an electrical outlet and set it up with user name and password.

Included with your purchase will be a 2 year warranty and lifetime tech support .

The components of this will include :

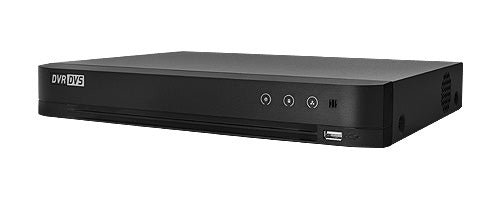

  • 1 Nuvis TVi7208p8 - 8ch,3MP,H.265,5in1
  • DVR,2IP,1HDD,VGA/HDMI,CVBS,4K with 12TB HDD

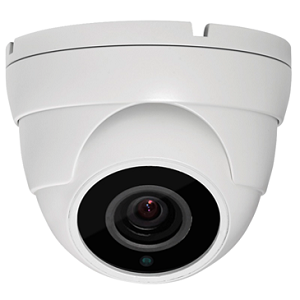

  • 8 Star-212EAF(W) - startvis, 2MP,4in1, eyeball,
  • 2.7~13.5mm AF, DC12V, white
  • 8 100 feet of precut cable with RJ 45 connectors

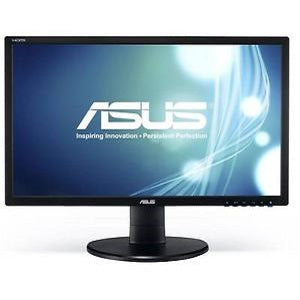

  • 1 22" Monitor - 22inch Wide HDMI, DVI, VGA,
  • 1920x1080 10000000:1 2ms

FREE SHIPPING

DVR/ NVR SPECS





Video / Audio input

Video Compression H.265(+)/H.264(+)
Video Input 8ch BNC (HD TVI/HD CVI/AHD/CVBS)
HD TVI Input 3 MP(ch1,2 only), 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
HD CVI/AHD Input 1080p25, 1080p30, 720p25, 720p30
CVBS input NTSC/PAL
IP Video input 2ch(Max.4MP)-Total 10ch
Audio Input 1 ch, RCA
Two-way audio 1ch, RCA  (using audio input)
Video Analytics Support 2 video channel
Video Analytics Type Line Cross Detection, Intrusion Detection

Video/Audio output

HDMI / VGA Output HDMI & VGA: simulation (1920×1080)
CVBS 1ch BNC, 704×480 Resolution,



Spot Out Monitor Only(No Menu)

Encoding resolution 3MP,1080P @15fps



720P,VGA/WD1/4CIF@30fps

Encoding resolution



(Sub Stream)

WD1/4CIF@12fps,  CIF@30fps
Video Bit Rate 32 Kbps ~ 6 Mbps
Stream Type Video/Video&Audio
Audio Output 1-ch, RCA (Linear, 1KΩ)
Audio Bit Rate 64kbps
Synchro Playback 8ch
Dual Stream Yes
Remote connections 128

Hard Disk

Capacity Up to 6TB capacity for each Disk
SATA 1 SATA interface

External Interface

Network Interface 1 RJ45 10M/100M
USB Interface 2 USB2.0 Interface
Serial Interface 1 RS-485 interface

General

Power Supply 12V DC
Consumption <20W
Working Temperature -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity 10%~90%
Chassis 1U chassis
Dimension 315 × 242 × 45mm (12.4 × 9.5 × 1.8 inch)
Weight ≤ 1.5Kg (3.3lb)

CMS/Web/Smart Phone

CMS iVMS
Web Live View/Remote Play Back/Remote Setup
Smart Phone Apps Guarding Expert ( iphone, android)



Guarding Expert HD(iPad)

DDNS Free DDNS service
