About This Product

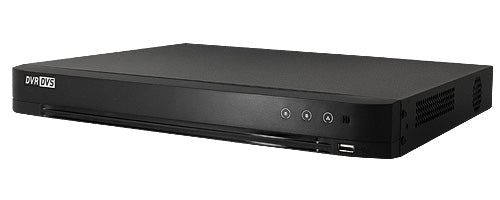

16ch TVI/CVI/AHD/CVBS/IP DVR 1U
Features
-H.265(+)/H.264(+) video compression
-HD TVI/HD CVI/AHD/CVBS/IP Hybrid
-3MP TVI on ch1,2,3&4
-4K HDMI
-HDMI/VGA output at up to 1920×1080P
-Independent CVBS spot out
- SATA SV 6TB HDD - 6TB SATA Security Grade HDD
Video / Audio input |
|
Video Compression | H.265(+)/H.264(+) |
Video Input | 16ch BNC (HD TVI/HD CVI/AHD/CVBS) |
HD TVI Input | 3 MP(ch1,2,3&4 only), 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
HD CVI/AHD Input | 1080p25, 1080p30, 720p25, 720p30 |
CVBS input | NTSC/PAL |
IP Video input | 2ch(Max.4MP)-Total 18ch |
Audio Input | 1 ch, RCA |
Two-way audio | 1ch, RCA (using audio input) |
Video Analytics | Support 2 video channel |
Video Analytics Type | Line Cross Detection, Intrusion Detection |
Video/Audio output |
|
HDMI / VGA Output | HDMI(4K) & VGA(1920×1080): simulation |
CVBS | 1ch BNC, 704×480 Resolution,
Spot Out Monitor Only(No Menu) |
Encoding resolution | 3MP,1080P @15fps
720P,VGA/WD1/4CIF@30fps |
Encoding resolution
(Sub Stream) |
WD1/4CIF@12fps, CIF@30fps |
Video Bit Rate | 32 Kbps ~ 6 Mbps |
Stream Type | Video/Video&Audio |
Audio Output | 1-ch, RCA (Linear, 1KΩ) |
Audio Bit Rate | 64kbps |
Dual Stream | Yes |
Remote connections | 128 |
Hard Disk |
|
Capacity | Up to 12TB capacity for each Disk |
SATA | 2 SATA interface |
External Interface |
|
Network Interface | 1 RJ45 10M/100M/1000M |
USB Interface | 1 USB2.0(front) , 1 USB3.0(rear) |
Serial Interface | 1 RS-485 interface |
General |
|
Power Supply | 12V DC |
Consumption | <25W |
Working Temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
Working Humidity | 10%~90% |
Chassis | 1U chassis |
Dimension | 380 × 290 × 48mm (15 × 11.4 × 1.9 inch) |
Weight | ≤ 2Kg (4.4lb) |
CMS/Web/Smart Phone |
|
CMS | iVMS |
Web | Live View/Remote Play Back/Remote Setup |
Smart Phone Apps | Guarding Expert ( iphone, android)
Guarding Expert HD(iPad) |
DDNS | Free DDNS service |

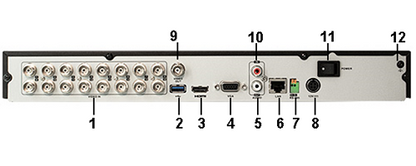

1. Video in
2. USB Port
3. HDMI Interface
4. VGA Interface
5. AUDIO OUT, RCA Connector
6. LAN Network Interface
7. RS-485 Serial Interface
8. 12VDC Power Input
9. CVBS(BNC) out
10. AUDIO IN, RCA Connector
11. Power Switch
12. GND
