RC 17 Wireless Motion Door Chime with Firebell – Up to 4,000 ft Range

RC 17 Wireless Motion Door Chime with Firebell – Up to 4,000 ft Range

Regular price $144.95
Regular price Sale price $144.95
Sale Sold out
Shipping calculated at checkout.
View full details

About This Product

The RC 17 Motion Door Chime with Firebell provides an audible customer-entry alert when someone passes through the sensor’s monitored area. It operates with doors open or closed and arrives fully assembled, ready for installation, with the timed output set to five seconds.

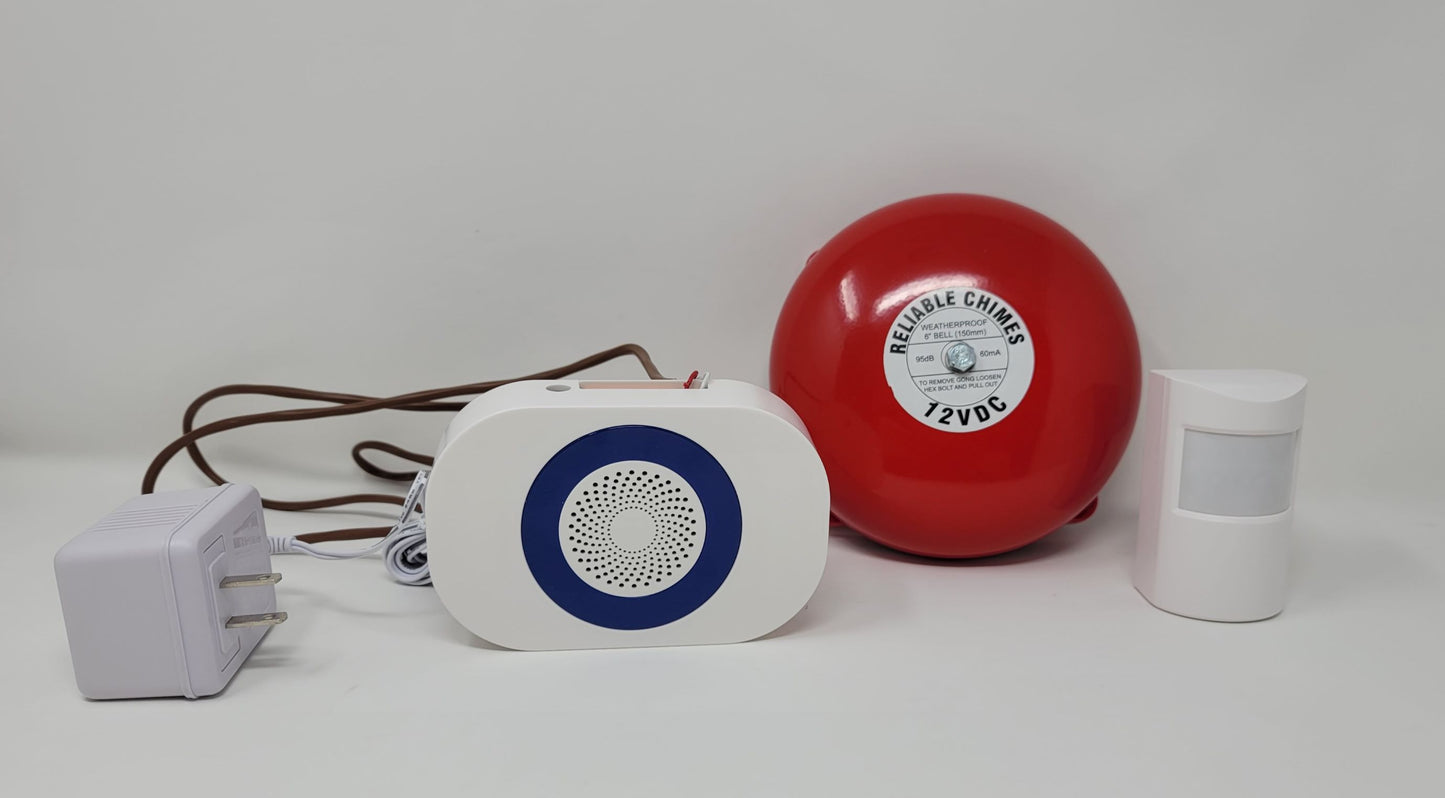

Kit components

  • Low-profile motion sensor.
  • Sensor mounting bracket.
  • Receiver with firebell.
  • 12V DC transformer for receiver power.

Sensor specifications and placement

  • Approximate dimensions: 3 inches tall × 2 inches wide × 2 inches deep.
  • Power: CR123A lithium battery.
  • Expected battery life: Approximately one year.
  • Detection distance: Approximately 40 feet.
  • Transmission range: Listed as up to 4,000 feet.
  • Positioning: Included bracket allows the sensor to be aimed toward the monitored area.

The recommended mounting height is approximately seven feet above the floor. Suggested locations include the ceiling above the door or the door frame, with the sensor facing down toward the entry area.

Receiver and timed-output features

  • 12 user-selectable tones for distinguishing different zones.
  • Receiver powered by a 12V DC transformer.
  • 12-volt relay output for 12-volt accessories such as a firebell, strobe or siren.
  • Two Form C relays with normally open, normally closed and common connections (NO, NC, C).
  • Selectable output durations: 1 second, 5 seconds, 15 seconds or 5 minutes.
  • Supplied with the output set to 5 seconds.

The firebell is part of this kit. Other accessories mentioned above describe receiver output applications, not additional included accessories.

Customer-entry alerts for your shop

Position the sensor to monitor your entrance so staff can hear the firebell when a customer passes through the detection area. Because activation depends on movement past the sensor rather than the door closing, the system can be used at entrances left open during business hours.

Frequently asked questions

Does the door need to be closed?
No. The sensor detects a customer passing through its monitored area whether the door is open or closed.

How long does the output remain active?
Choose 1 second, 5 seconds, 15 seconds or 5 minutes. The kit arrives set to 5 seconds.

What powers the sensor and receiver?
The sensor uses a CR123A lithium battery. The receiver uses a 12V DC transformer.

Is detection distance the same as transmission range?
No. The listed detection distance is approximately 40 feet, while the listed wireless transmission range is up to 4,000 feet.

Is assembly required?
The kit arrives fully assembled and ready for installation.
