NUVIS wired NVR system - 8 armored cameras

NUVIS wired NVR system - 8 armored cameras

Regular price $3,285.00
Regular price Sale price $3,285.00
Sale Sold out
Shipping calculated at checkout.
View full details

About This Product

The NUVIS wired NVR System is the ideal way to protect your home or business from thieves and other unsavory characters. This advanced security system has 8 unique dome cameras that feature both digital and optical zoom. These 8 armored cameras come with a field of view of 112 degrees and can easily record any movement, including sound.

You can run the cameras at either 20 fps or 30 fps, depending on your preferences. Expect the 2688 and 1520 to be exceptionally clear, both during the day and the night.

Below are some other important features of this product:

- Nuvis IP wired 8 camera kit comes with 8 dome cameras, 2 SATA HDD, smart phone application, 8 cables and NVR system

- As a bonus, you get free shipping and a free Security sign

- Cameras are weatherproof

- The cameras can operate at a temperature of -30 to 60 degrees Celsius

- Cameras have 4 MPX, HD resolution, with True Image recording capabilities



Buy the Nuvis IP wired 8 camera kit now and never worry about intruders again.

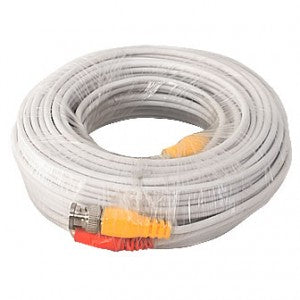

SYSTEM TO INCLUDE 8 ARMORED NUVIS DOME CAMERAS ( digital as well as optical zoom ), 8 100 FOOT CABLES , NVR, FREE SECURITY SIGN AND FREE SHIPPING



8 CHANNEL NVR SPECS :

NVR SPECS:

8ch Plug & Play PoE NVR

Features

-8 PoE  Port
-Up to 5 Megapixels Resolution Recording
-Up to 8 ch synchronous playback at 4CIF resolution
-HDMI/VGA output at up to 1920×1080P
-2 SATA HDD

Video / Audio input

IP Video input 8 ch, 8 PoE
Two-way Audio 1 ch, RCA

Video/Audio output

Recording resolution 5MP/ 3MP/ 1080p/ UXGA/ 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF
HDMI/VGA output HDMI & VGA : simulation
Audio output 1 ch, RCA (Linear, 1kΩ)
Playback resolution 5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Synchronous playback 8ch@4CIF, 4ch@720P,2ch@ 1080P,1ch, 5MP

Hard disk

Type 2 SATA interfaces
Capacity Up to 6TB capacity for each HDD

External Interface

Network interface 1 x RJ-45 10 /100 /1000 Mbps8 x10 /100 Mbps PoE Ethernet
Input 80 Mbps
Output 80 Mbps
Serial interface 1 RS-485 half-duplex interface
USB interface 2 x USB2.0

General

Power Supply 100~240VAC, 47~63Hz, 3A
Power Consumption 15 W (without hard disk)
Working Temperature -10 °C ~ +55 °C(14°F~131°F)
Working humidity 10%~90%
Chassis 19-inch rack mounted 1U chassis
Dimensions 17.3 inches × 11 inches × 1.77 inches
Weight 5.5 lb

CMS/Web/Smart Phone

CMS iCMS
Web 8ch View/8ch Playback
Smart Phone Apps Guarding Expert ( iphone, android)Guarding Expert HD(iPad)
DDNS Free DDNS service
​
Synchronous playback 4ch@1080P, 2ch@4MP

Hard disk

Type 1 SATA interfaces
Capacity Up to 6TB capacity for each HDD

External Interface

Network interface 1 x RJ-45 10 /100 Mbps
Input 40 Mbps
Output 40 Mbps
USB interface 2 x USB2.0

General

Power Supply Input:100~240VAC, 50~60Hz,Output: 12VDC,1.5A
Power Consumption 10 W (without hard disk)
Working Temperature 14°F~131°F(-10 °C ~ +55 °C)
Working humidity 10%~90%
Chassis 1U chassis
Dimensions 7.9” × 8.1” × 1.9”(200x205x48mm)
Weight 2.2 lb(1kg)

CMS/Web/Smart Phone

CMS iVMS
Web 4ch View/4ch Playback
Smart Phone Apps Guarding Vision (iphone, android)
P2P P2P video streaming support
DDNS Free DDNS service



CAMERA SPECS AND HIGHLIGHTS

4 Mega Pixel Auto Focus IR Vandal Camera

Features

-4 megapixel High Resolution
-20fps @ 2688×1520
-Low Illumination
-Auto-focus 2.8~12mm Varifocal lens
-3D DNR & 120dB WDR & BLC
-IP66 Rating
-IR Range up to 100ft
-True Day / Night
-Junction Box available
Conduit pipe holes
(1) 3/4″ NPT thread w/ Cap (Side)

Digital as well as optical zoom

Camera
Image Sensor 1/3″ Progressive Scan CMOS
Minimum Illumination 0.01 lux @F1.2, AGC ON,
0 lux with IR
Shutter Time 1/30s ~ 1/100,000s
Lens Auto-focus motorized 2.8~12mm @F1.4
Horizontal field of view 112°~33.8°
Lens Mount Φ14
Optical Filter Mechanically Switching IR Filter
Noise Reduction 3D DNR
WDR 120dB WDR
On-board Storage Micro SD/SDHC/SDXC card, Max 128 GB
Video Compression H.264/M-JPEG
H.264 Profile Main profile
Bit Rate 32 Kbps~16Mbps
Max Resolution 2688×1520
Frame Rate 20fps (2688×1520), 30fps (1920 × 1080), 30fps(1280×720)
Image Settings Saturation, brightness, contrast adjustable
BLC Yes, zone configurable
Network
Network Storage NAS
Alarm Trigger Line Crossing, Intrusion Detection, Motion detection,
tampering alarm, network disconnect, IP address conflict, storage  exception
Protocols TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP,
NTP, UPnP, ICMP,IGMP,SNMP, FTP, 802.1X, QoS, HTTPS
Compatibility ONVIF(Profile S&G), PSIA, CGI
General Functionalities (Security) dual stream, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filtering, Anonymous access
Network Interface 1 RJ45, 10 M/100 M Ethernet port
General
Power Supply 12 V DC ± 10%; PoE (802.3af)
Power Consumption Max. 5.5W (7.5W with IR on)
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing)
Impact Protection exceeding IK10
EXIR Range Up to 100ft
Dimensions 3.74” x 4.13” x10.18”
Weight 2 lb
Weather Proof IP66
