- Product SKU: EDGE 5 TS
- Category: Cyte security cameras, Real Cameras | Cyte security systems

- Order within
Available:
In Stock
$218.00

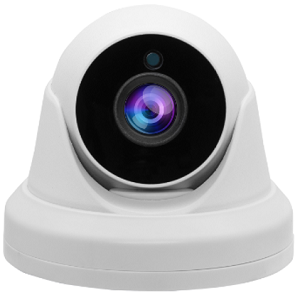

5MP IP Mini Turret Camera
Features
-Sony Stavis ( Extreme low light)
-5MP(2592×1944)
-EXIR 120ft
-True Day / Night
-2.8 MM lens available
-3D DNR, DWDR,BLC
-IP66 Rating
NDA AND ONVIS COMPLIANT
Included Accessories
B4 Junction Box
TECH SPECS
|
Camera |
|
Image Sensor | 1/2.7″ Sony Starvis CMOS |
Minimum Illumination | 0.05 lux @F1.2, AGC ON, 0 lux with IR |
IR LED | EXIR 120ft Range |
Shutter Time | 1/25s ~ 1/100,000s |
Lens | 2.8mm Lens |
Lens Mount | M12 |
Optical Filter | Mechanically Switching IR Filter |
Noise Reduction | 3D DNR |
WDR | DWDR |
Video Compression | H.265(+)/H.264 |
Bit Rate | 32 Kbps~8Mbps |
Image |
|
Max Resolution | 5MP(2592×1944) |
Frame Rate | 20fps@5MP(2592×1944),
25fps@4MP(2592×1520) |
Image Settings | Rotate Mode, Saturation, Brightness,
Contrast, Sharpness adjustable |
AGC/BLC | Yes |
Network |
|
Plug and Play | Plug and Play with Nuvis NVRs |
Protocols | HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP |
Compatibility | ONVIF 2.6 , RTSP compatible |
General Functionalities | dual stream, mirror, password protection,
privacy mask |
Network Interface | 1 RJ45, 10/100M Ethernet port |
General |
|
Power Supply | 12 V DC ± 10%; PoE (802.3af) |
Power Consumption | Max. 5W (8W with IR on) |
Operating Temperature | -10°C ~ 60°C (14°F ~ 140°F) humidity 95% or less (non-condensing) |
Dimension | ¢4.5 inches x 4.2 inches(H) |
Weight | 0.8lb |
Weather Proof | IP66 |
5MP IP Mini Turret Camera
Features
-Sony Stavis ( Extreme low light)
-5MP(2592×1944)
-EXIR 120ft
-True Day / Night
-2.8 MM lens available
-3D DNR, DWDR,BLC
-IP66 Rating
NDA AND ONVIS COMPLIANT
Included Accessories
B4 Junction Box
TECH SPECS |
Camera |
|
Image Sensor | 1/2.7″ Sony Starvis CMOS |
Minimum Illumination | 0.05 lux @F1.2, AGC ON, 0 lux with IR |
IR LED | EXIR 120ft Range |
Shutter Time | 1/25s ~ 1/100,000s |
Lens | 2.8mm Lens |
Lens Mount | M12 |
Optical Filter | Mechanically Switching IR Filter |
Noise Reduction | 3D DNR |
WDR | DWDR |
Video Compression | H.265(+)/H.264 |
Bit Rate | 32 Kbps~8Mbps |
Image |
|
Max Resolution | 5MP(2592×1944) |
Frame Rate | 20fps@5MP(2592×1944),
25fps@4MP(2592×1520) |
Image Settings | Rotate Mode, Saturation, Brightness,
Contrast, Sharpness adjustable |
AGC/BLC | Yes |
Network |
|
Plug and Play | Plug and Play with Nuvis NVRs |
Protocols | HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP |
Compatibility | ONVIF 2.6 , RTSP compatible |
General Functionalities | dual stream, mirror, password protection,
privacy mask |
Network Interface | 1 RJ45, 10/100M Ethernet port |
General |
|
Power Supply | 12 V DC ± 10%; PoE (802.3af) |
Power Consumption | Max. 5W (8W with IR on) |
Operating Temperature | -10°C ~ 60°C (14°F ~ 140°F) humidity 95% or less (non-condensing) |
Dimension | ¢4.5 inches x 4.2 inches(H) |
Weight | 0.8lb |
Weather Proof | IP66 |
