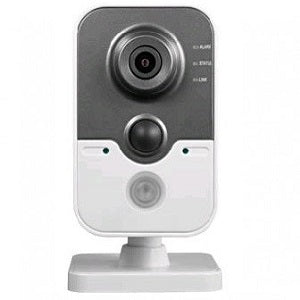

2 Mega Pixel IP Cube Camera
Features
-2 megapixel High Resolution
-WiFi
-Built-in Mic and Speaker
-PIR Sensor
-Micro SD Card Slot
-3D DNR & DWDR & BLC
-True Day / Night
TECH SPECS
|
Camera |
|
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Min. Illumination | 0.028 lux@F2.0, AGC ON 0 lux with IR |
| Shutter Time | 1/30s ~ 1/100,000s |
| Lens | 2.8mm((92° ) |
| Lens Mount | M12 |
| Optical Filter | Mechanically Switching IR Filter |
| Noise Reduction | 3D DNR |
| WDR | Digital WDR |
| Audio | Built-in Microphone and Speaker(2Way Audio) |
| Alarm | 1ch Alarm In/Out |
| WiFi | Built-in |
| PIR | Built-in PIR sensor |
| Storage | Micro SD Card slot(Max 64GB) |
| Video Compression | H.264/M-JPEG |
| Bit Rate | 32 Kbps~16Mbps |
|
Image |
|
| Max Resolution | 1920×1080 |
| Frame Rate | 30 fps (1920×1080) |
| Image Settings | Saturation, brightness, contrast adjustable |
| BLC | Yes, zone configurable |
|
Network |
|
| Network Storage | NAS |
| Alarm Trigger | Motion detection, tampering alarm, network disconnect, IP address conflict, storage full, storage error |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP,IGMP,SNMP, FTP, 802.1X, QoS, HTTPS |
| Compatibility | ONVIF, PSIA, CGI |
| General Functionalities (Security) | User Authentication, reset button, flickerless, dual stream, heartbeat, mirror, watermark |
| Network Interface | 1 RJ45, 10 M/100 M Ethernet port |
|
General |
|
| Power Supply | 12 V DC ± 10%; PoE (802.3af) |
| Power Consumption | Max. 5.5W |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing) |
| IR Range | Up to 30ft |
| Dimensions | 2.5 x2 × 5 Inch |
| Weight | 0.8 lb |
|
NVR |
|
| NVR | NUVIS, PRIME, MEGA |
