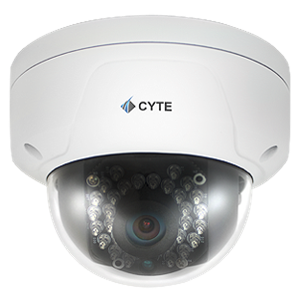

4 Mega Pixel HD IP Vandal Camera
Features
-4 megapixel High Resolution
-20fps @ 2688×1520
-Micro SD Card Slot
-2Axis
-3D DNR,DWDR,BLC,ROI
-IP66 Rating
-IR Range up to 100ft
-True Day / Night
-Vandal Resistant
SPECS
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Minimum Illumination |
0.01 lux @F1.2, AGC ON,
0 lux with IR |
| Shutter Time |
1/30s ~ 1/100,000s |
| Lens |
4mm (82°) or 2.8mm (96°) |
| Lens Mount |
M12 |
| Optical Filter |
Mechanically Switching IR Filter |
| Noise Reduction |
3D DNR |
| Wide Dynamic Range |
Digital WDR |
| SD Card |
No |
| Video Compression |
H.264/M-JPEG |
| Bit Rate |
256 Kbps~16Mbps |
|
|
| Max Resolution |
2688×1520 |
| Frame Rate |
20fps (2688×1520), 30fps (1920 × 1080), 30fps(1280×720) |
| Image Settings |
Saturation, brightness, contrast adjustable |
| BLC |
Yes, zone configurable |
|
Network
|
| Network Storage |
NAS |
| Alarm Trigger |
Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception |
| Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP,
NTP, UPnP, ICMP,IGMP,SNMP, FTP, 802.1X, QoS, HTTPS |
| Compatibility |
ONVIF(Profile S&G), PSIA, CGI |
| General Functionalities (Security) |
dual stream, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filtering, Anonymous access |
| Network Interface |
1 RJ45, 10 M/100 M Ethernet port |
|
General
|
| Power Supply |
12 V DC ± 10%; PoE (802.3af) |
| Power Consumption |
Max. 5W (7W with IR on) |
| Operating Temperature |
-30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing) |
| Impact Protection |
exceeding IK10 |
| IR Range |
Up to 100ft |
| Dimensions |
4.4″ (Φ) × 3.3″ (H) |
| Weight |
1.1 lb |
| Weather Proof |
IP66 |
|
NVR
|
| NVR |
NUVIS, PRIME, MEGA |
4 Mega Pixel HD IP Vandal Camera
Features
-4 megapixel High Resolution
-20fps @ 2688×1520
-Micro SD Card Slot
-2Axis
-3D DNR,DWDR,BLC,ROI
-IP66 Rating
-IR Range up to 100ft
-True Day / Night
-Vandal Resistant
SPECS
| Image Sensor |
1/3″ Progressive Scan CMOS |
| Minimum Illumination |
0.01 lux @F1.2, AGC ON,
0 lux with IR |
| Shutter Time |
1/30s ~ 1/100,000s |
| Lens |
4mm (82°) or 2.8mm (96°) |
| Lens Mount |
M12 |
| Optical Filter |
Mechanically Switching IR Filter |
| Noise Reduction |
3D DNR |
| Wide Dynamic Range |
Digital WDR |
| SD Card |
No |
| Video Compression |
H.264/M-JPEG |
| Bit Rate |
256 Kbps~16Mbps |
|
|
| Max Resolution |
2688×1520 |
| Frame Rate |
20fps (2688×1520), 30fps (1920 × 1080), 30fps(1280×720) |
| Image Settings |
Saturation, brightness, contrast adjustable |
| BLC |
Yes, zone configurable |
|
Network
|
| Network Storage |
NAS |
| Alarm Trigger |
Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception |
| Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP,
NTP, UPnP, ICMP,IGMP,SNMP, FTP, 802.1X, QoS, HTTPS |
| Compatibility |
ONVIF(Profile S&G), PSIA, CGI |
| General Functionalities (Security) |
dual stream, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filtering, Anonymous access |
| Network Interface |
1 RJ45, 10 M/100 M Ethernet port |
|
General
|
| Power Supply |
12 V DC ± 10%; PoE (802.3af) |
| Power Consumption |
Max. 5W (7W with IR on) |
| Operating Temperature |
-30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing) |
| Impact Protection |
exceeding IK10 |
| IR Range |
Up to 100ft |
| Dimensions |
4.4″ (Φ) × 3.3″ (H) |
| Weight |
1.1 lb |
| Weather Proof |
IP66 |
|
NVR
|
| NVR |
NUVIS, PRIME, MEGA |
