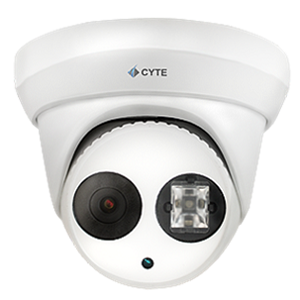

4 Mega Pixel HD IP Turret Camera
Features
-4 megapixel High Resolution
-20fps @ 2688×1520
-3Axis, 2.8, 4, 6mm Lens available
-120dB WDR
-3D DNR, BLC,ROI
-IP66 Rating
-EXIR Range up to 100ft
-True Day / Night
Optional Accessories
–JB-NUVIS-T Junction Box
SPECS
|
Camera |
|
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Minimum Illumination | 0.028 lux@F2.0, AGC ON 0 lux with IR |
| Shutter Time | 1/3s ~ 1/10,000s |
| Lens | 2.8mm((106° ), 4mm (83° ) , 6mm(56°) |
| Lens Mount | M12 |
| Optical Filter | Mechanically Switching IR Filter |
| Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120dB WDR |
|
Camera Features |
|
| Video Compression | H.264/M-JPEG |
| H.264 Profile | Main profile |
| Bit Rate | 256 Kbps~16Mbps |
|
Image |
|
| Max Resolution | 2688×1520 |
| Frame Rate | 20fps (2688×1520), 30fps (1920 × 1080), 30fps(1280×720) |
| Image Settings | Saturation, brightness, contrast adjustable |
| BLC | Yes, zone configurable |
|
Network |
|
| Network Storage | NAS |
| Alarm Trigger | Line Crossing, Intrusion Detection, Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP,IGMP,SNMP, FTP, 802.1X, QoS, HTTPS |
| Compatibility | ONVIF(Profile S&G), PSIA, CGI |
| General Functionalities (Security) | Dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access |
| Network Interface | 1 RJ45, 10 M/100 M Ethernet port |
|
General |
|
| Power Supply | 12 V DC ± 10%; PoE (802.3af) |
| Power Consumption | Max. 5.5W (7.5W with IR on) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing) |
| EXIR Range | Up to 100ft |
| Dimensions | 5″ × 3.9″ |
| Weight | 1.5lb |
| Weather Proof | IP66 |
|
NVR |
|
| NVR | NUVIS, PRIME, MEGA |
