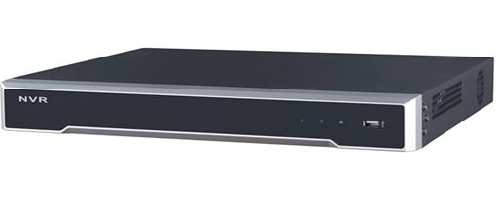

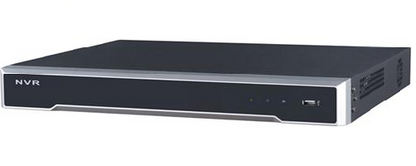

4K, 16ch Plug & Play PoE NVR
Features
-16ch IP camera Input
-16 PoE Port
-Up to 8 Megapixels Resolution Recording
-Up to 16 ch @1080P synchronous playback
-HDMI output at up to 4K(3840*2160)
-2 SATA HDD
will include 1 TB HDD
Video / Audio input
IP Video input16 ch, 16 PoE(af/at)CompressionH.264, H.265, MPEG4Two-way Audio1 ch, RCA
Video/Audio output
Recording resolution 8MP/6MP/5MP/4MP/3MP/1080p
UXGA/720p/VGA/4CIF/DCIF/2CIF/CIFHDMI4K(3840*2160),1920 × 1080P,1600 × 1200 1280 × 1024, 1280 × 720, IndependentVGAMax. 1920x1080P, IndependentAudio output1 ch, RCA (Linear, 1kΩ)Playback resolution8MP/6MP/5MP/4MP/3MP/1080p
UXGA/720p/VGA/4CIF/DCIF/2CIF/CIFSynch playback4ch@8MP, 8ch@4MP, 16ch@1080P
Hard disk
Type2 SATA interfaces(12TB Max Each)

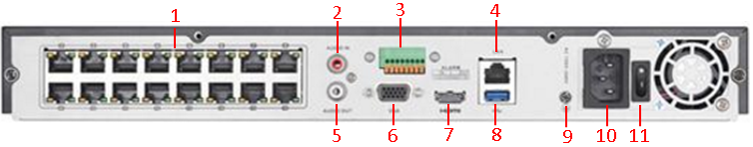

External Interface
Network interface1 x RJ-45 10 /100 /1000 Mbps 16 x10 /100 Mbps PoE(af/at)Input160 MbpsOutput160 MbpsUSB interfaceUSB 2.0 x1 @front, USB 3.0 x1 @rearAlarm in/out4ch /1ch
General
Power Supply100~240VAC, 50~60HzPower ConsumptionMax. 280 WWorking Temperature14 °F ~ 131 °FWorking humidity10%~90%Dimensions15.0” × 11.4” × 1.8”Weight6.6 lb
CMS/Web/Smart Phone
CMSiVMSWeb16ch View/16ch PlaybackSmart Phone AppsGuarding Expert ( iphone, android)
Guarding Expert HD(iPad)DDNSFree DDNS service
