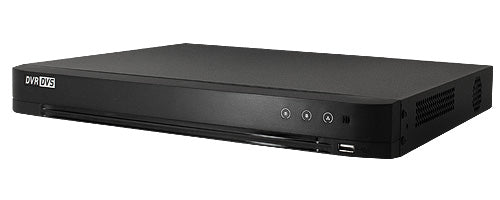

Nuvis TVK1216

Nuvis TVK1216

Regular price $946.00
Regular price Sale price $946.00
Sale Sold out
Shipping calculated at checkout.
View full details

About This Product

16ch TVI/CVI/AHD/CVBS/IP DVR 1U

Features

-H.265(+)/H.264(+) video compression
-HD TVI/HD CVI/AHD/CVBS/IP Hybrid
-3MP TVI on ch1,2,3&4
-4K HDMI
-HDMI/VGA output at up to 1920×1080P
-Independent CVBS spot out

- SATA SV 6TB HDD - 6TB SATA Security Grade HDD



Video / Audio input

Video Compression H.265(+)/H.264(+)
Video Input 16ch BNC (HD TVI/HD CVI/AHD/CVBS)
HD TVI Input 3 MP(ch1,2,3&4 only), 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
HD CVI/AHD Input 1080p25, 1080p30, 720p25, 720p30
CVBS input NTSC/PAL
IP Video input 2ch(Max.4MP)-Total 18ch
Audio Input 1 ch, RCA
Two-way audio 1ch, RCA  (using audio input)
Video Analytics Support 2 video channel
Video Analytics Type Line Cross Detection, Intrusion Detection

Video/Audio output

HDMI / VGA Output HDMI(4K) & VGA(1920×1080):  simulation
CVBS 1ch BNC, 704×480 Resolution,



Spot Out Monitor Only(No Menu)

Encoding resolution 3MP,1080P @15fps



720P,VGA/WD1/4CIF@30fps

Encoding resolution



(Sub Stream)

WD1/4CIF@12fps,  CIF@30fps
Video Bit Rate 32 Kbps ~ 6 Mbps
Stream Type Video/Video&Audio
Audio Output 1-ch, RCA (Linear, 1KΩ)
Audio Bit Rate 64kbps
Dual Stream Yes
Remote connections 128

Hard Disk

Capacity Up to 12TB capacity for each Disk
SATA 2 SATA interface

External Interface

Network Interface 1 RJ45 10M/100M/1000M
USB Interface 1 USB2.0(front) , 1 USB3.0(rear)
Serial Interface 1 RS-485 interface

General

Power Supply 12V DC
Consumption <25W
Working Temperature -10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity 10%~90%
Chassis 1U chassis
Dimension 380 × 290 × 48mm (15 × 11.4 × 1.9 inch)
Weight ≤ 2Kg (4.4lb)

CMS/Web/Smart Phone

CMS iVMS
Web Live View/Remote Play Back/Remote Setup
Smart Phone Apps Guarding Expert ( iphone, android)



Guarding Expert HD(iPad)

DDNS Free DDNS service

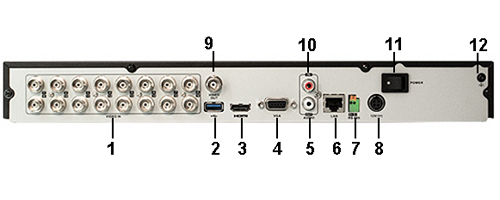

1. Video in
2. USB Port
3. HDMI Interface
4. VGA Interface
5. AUDIO OUT, RCA Connector
6. LAN Network Interface
7. RS-485 Serial Interface
8. 12VDC Power Input
9. CVBS(BNC) out
10. AUDIO IN, RCA Connector
11. Power Switch
12. GND
