RC 17 Motion Door Chime with Firebell - 4000 foot transmision
Rated 3.5/5 based on 11 customer reviews
RC 17 Motion Door Chime with Firebell - 4000 foot transmision

RC 17 Motion Door Chime with Firebell - 4000 foot transmision

  • Order within
Available: In Stock
$200.00
Wishlist Compare

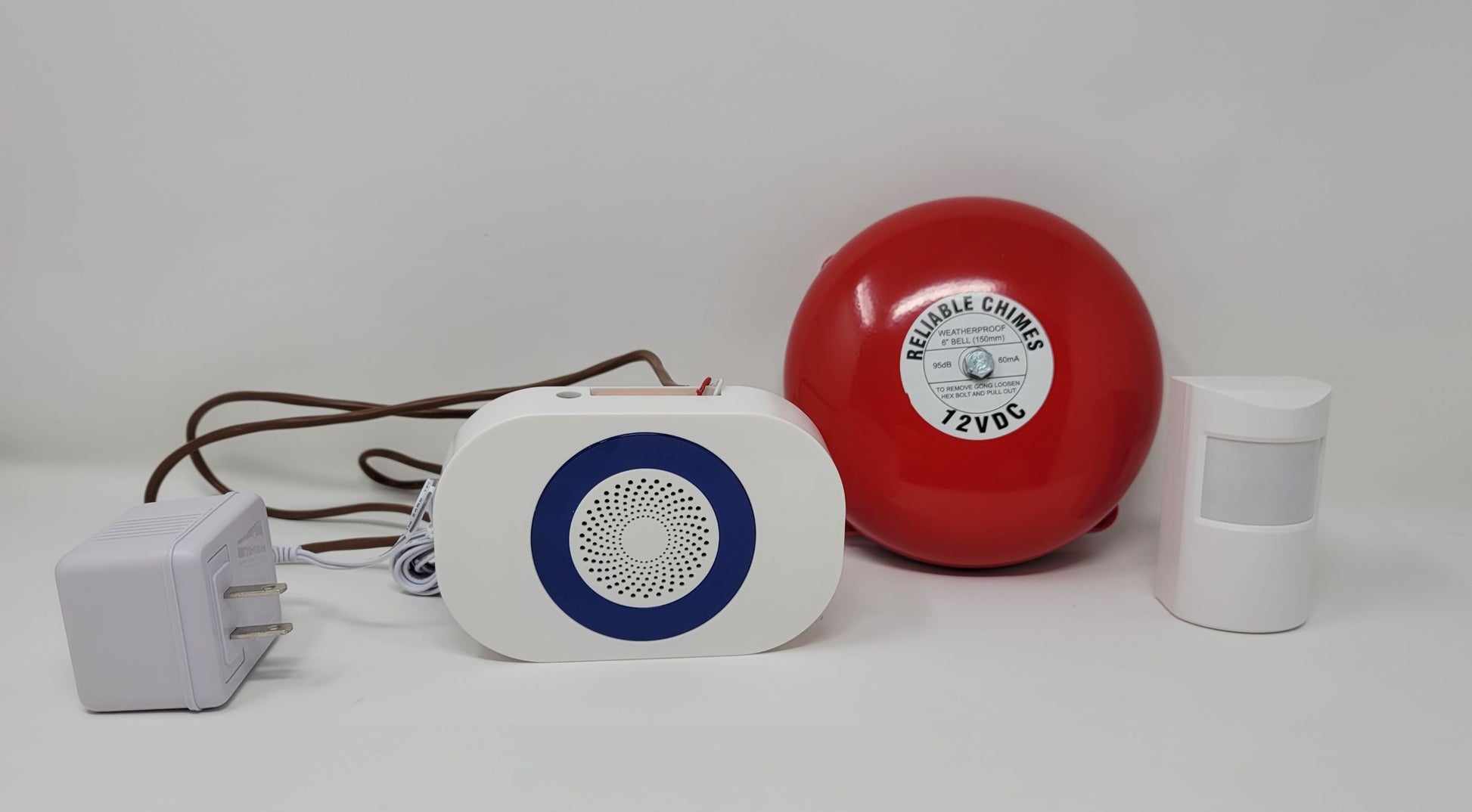

The RC 17 motion door chime with firebell allows for a customer to be heard when they enter your store or shop.  It shall operate whether the door is opened or closed and only when a customer passes by the the low profile sensor.



Sensor

The sensor measurements are approximately 3 inches tall by 2 inches wide by 2 inches deep.

It is powered by a CR123A Lithium battery that should last easily 1 year.

There is a mounting bracket included for ease of positioning the sensor toward the area to be monitored  It is best mounted about 7 feet from the floor towards the area  to be monitored. The beam projection is aproximately 40 feet, however by positioning the sensor using the included bracket it can be adjusted where you need it most. Our suggestion is a ceiling above the door or the door frame ( my favorite ) facing down .

Receiver with Firebell

The receiver will 12 user selectable tones tunes so that different zones can be distinguished. The receiver is powered by a 12VDC transformer.

It shall have a 12 volt relay to provide power to any 12 volt accessory including firebell, strobe , siren, etc.

Additionally there two Form C relays ( NO, NC ,C ) for multiple other uses.

Timed output of either 1 second, 5 seconds, 15 seconds , or 5 minutes

The RC 17 shall arrive as a fully assembled kit ready for installation with timed output set at 5 seconds



The RC 17 motion door chime with firebell allows for a customer to be heard when they enter your store or shop.  It shall operate whether the door is opened or closed and only when a customer passes by the the low profile sensor.



Sensor

The sensor measurements are approximately 3 inches tall by 2 inches wide by 2 inches deep.

It is powered by a CR123A Lithium battery that should last easily 1 year.

There is a mounting bracket included for ease of positioning the sensor toward the area to be monitored  It is best mounted about 7 feet from the floor towards the area  to be monitored. The beam projection is aproximately 40 feet, however by positioning the sensor using the included bracket it can be adjusted where you need it most. Our suggestion is a ceiling above the door or the door frame ( my favorite ) facing down .

Receiver with Firebell

The receiver will 12 user selectable tones tunes so that different zones can be distinguished. The receiver is powered by a 12VDC transformer.

It shall have a 12 volt relay to provide power to any 12 volt accessory including firebell, strobe , siren, etc.

Additionally there two Form C relays ( NO, NC ,C ) for multiple other uses.

Timed output of either 1 second, 5 seconds, 15 seconds , or 5 minutes

The RC 17 shall arrive as a fully assembled kit ready for installation with timed output set at 5 seconds
