About This Product

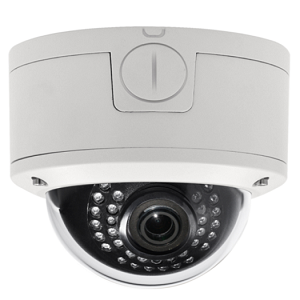

STAR-812VAF
Sharper Moving Object, Extreme Low Light 8MP, Motorized Auto Focus Vandal Dome
Features
-8MP TVI/AHD/CVI/CVBS
-1/1.8” Extreme low light CMOS
-Sharper image for moving object
-True Day/Night
-Motorized Auto Focus 2.8~12mm Lens
-UTC(control Zoom & OSD over coax)
-32 IR LEDs (100ft)
-DWDR
-IP66 weatherproof
Camera |
|
Image Sensor | 8MP, 1/1.8’’ Extream Low Light Sensor |
Effective Pixels | 3840 (H) × 2160 (V) |
Min. Illumination | 0.001 Lux (0Lux with IR) |
Scanning System | Progressive Scan |
Shutter Time | 1/30 s to 1/60,000 s |
IR LED | ¢5X32PCS IR LED, working distance: 100ft |
Lens | Motorized Auto Focus 2.8~12mm Lens |
Angle of view | 104~36° |
Lens Mount | M12 |
Angle Adjustment | Pan: 0 – 350°, Tilt: 0 – 90°, Rotation: 0 – 180° |
UTC | control Zoom & OSD over video cable |
Day & Night Mode | External, Auto, Color, B/W |
DNR | 3D DNR |
Wide dynamic range | DWDR |
Synchronization | Internal synchronization |
Video Frame Rate | 15fps @8MP, 30fps@CVBS |
Video Output | 1 BNC( TVI/AHD/CVI/Analog Dip switch) |
S/N Ratio | 50dB (min) (ACG closed) |
Menu |
|
Auto White Balance | AUTO |
AF Mode | Auto/Semi/Manual/TDN sync |
AGC | AUTO |
GENERAL |
|
Dimension | ¢5.5” x 5”(H) |
Power Source | DC12V 500mA |
3 Axis | 3 Axis Mount |
Hanger | Bottom of dome is Hanger
for easy install |
Operation
Temperature |
-10℃ ~ +50℃ RH95% Max |
Weight | 2.3lb |
