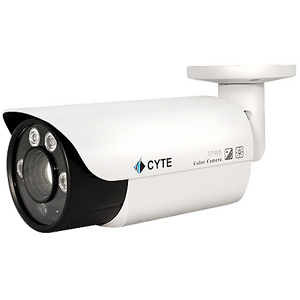

STAR-812WAF V2, cyte camera

STAR-812WAF V2, cyte camera

Regular price $302.00
Regular price Sale price $302.00
Sale Sold out
Shipping calculated at checkout.
View full details

About This Product

STAR-812WAF V2

Sharper Moving Object, Extreme Low Light 8MP, Motorized Auto Focus IR Bullet camera

Features

-8MP TVI/AHD/CVI/CVBS
-1/1.8” Extreme low light CMOS
-Sharper image for moving object
-True Day/Night
-Motorized Auto Focus 2.8~12mm Lens
-UTC(control Zoom & OSD over coax)
-4 Array IRs (180ft)
-DWDR
-IP66 weatherproof



Camera

Image Sensor 8MP, 1/1.8’’ Extream Low Light Sensor
Effective Pixels 3840 (H) × 2160 (V)
Min. Illumination 0.001 Lux (0Lux with IR)
Scanning System Progressive Scan
Shutter Time 1/30 s to 1/60,000 s
IR LED 4 Array IRs, working distance: 180ft
Lens Motorized Auto Focus 2.8~12mm  Lens
Angle of  view 104~36°
Lens Mount M12
Angle Adjustment Pan: 0 – 360°, Tilt: 0 – 90°, Rotation: 0 – 360°
UTC control Zoom & OSD over video cable
Day & Night Mode External, Auto, Color, B/W
DNR 3D DNR
Wide dynamic range DWDR
Synchronization Internal synchronization
Video Frame Rate 15fps @8MP, 30fps@CVBS
Video Output 1 BNC( TVI/AHD/CVI/Analog Dip switch)
S/N Ratio 50dB (min) (ACG closed)

Menu

Auto White Balance AUTO
AF Mode Auto/Semi/Manual/TDN sync
AGC AUTO

GENERAL

Dimension 12”(W) x 3.5”(H) x 3.5”(D)
Power Source DC12V 900mA
Bracket 3 Axis , Cable through
Operation



Temperature

-10℃ ~ +50℃ RH95% Max
Weight 3.1lb
